SV54SPC Manual Knee Mill

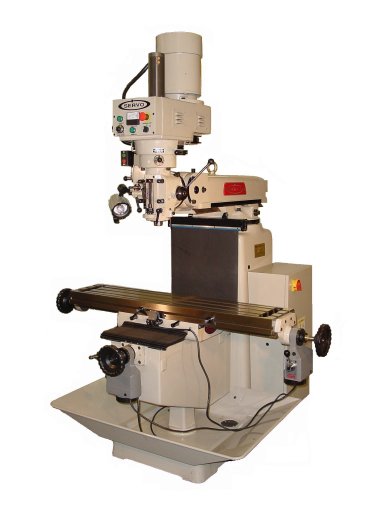

12 x 54 knee mill

  • High tensile Meehanite castings.
  • Hardened and ground with hard chrome plating.
  • Quill return spring made in the USA.
  • Hardened and ground precision back gear.
  • Matched pair of Fafnir ABEC 7 angular contact spindle bearings
  • Hardened and ground ways, column and knee.
  • Rulon® on table and cross
    ways to minimize stick-slip
  • Auto lube with alarm

Brief Specifications:

  • 5 hp variable frequency inverter drive 50-625 rpm back gear/500-5000 rpm direct
  • NST 40 taper spindle nose.
  • Travels: 34" Table ; 16" Cross ; 5" Quill ; Knee 16"
  • Table 12" x 54". Table load 1,200 lbs. max.
  • Floor area (W x D) 80" x 65". Height 87"
  • Full Specifications

Standard Mill Features

  • Precision ground ball screws
  • Inverter head - RPM 50-625 /500-5000
  • Matched pair of Fafnir ABEC7 angular contact spindle bearings
  • Hardened and ground quill with hard chrome plating
  • Quill return spring made in USA
  • Hardened and ground precision back gear
  • Hardened and ground ways, column and knee
  • Rulon on table and cross ways
  • High tensile Meehanite cast iron
  • Automatic way lubrication system with alarm
  • Wipers (4) under table
  • Front and rear way cover
  • Halogen lamp (110 volt)
  • Fan mounted in head for additional cooling
  • Pre wired connection box
  • ProCalc material directory & spindle speed calculator
  • Chip tray

Options

  • Servo Type 150 Power Feeds mounted on table and cross axis
  • Servo Type 200 Power Feeds mounted on knee axis
  • High Quality Tools Power drawbar
  • Flood coolant
  • Riser blocks - 4", 6", 8"
  • Servo Turbo Drive for table, cross and knees
  • 2-axis and 3-axis DROs from Acu-Rite, Anilam, Fagor, Newall, and Sony
  • 52 piece clamping kit
  • Precision milling vise
